ACC-99D

ACC-99D

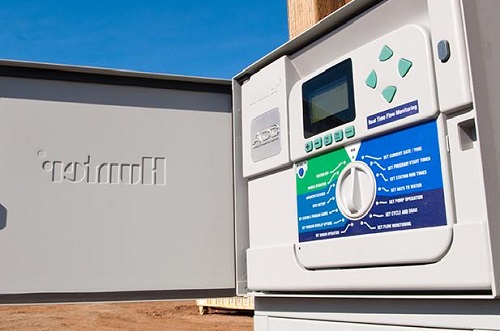

The Two-Wire Decoder Version of Hunter’s Most Powerful Commercial Controller

The versatility of the ACC controller grows even more powerful with the addition of the two-wire decoder system from Hunter. ACC-99D uses two-wire decoders to control up to 99 stations without giving up the arsenal of features provided by the ACC. Operating large numbers of valves over long distances, the ACC99D decoder controller takes full advantage of the powerful ACC feature set. Since it’s two-wire powered, it also saves copper wire, simplifies troubleshooting, permits the rapid addition of new stations, minimizes trenching, and permits remote sensor monitoring over the two-wire path.

Operating Specifications

Transformer Input: 120/230 VAC, 50/60 Hz, 2A max at 120V, 1A max at 230V
Max AC Current Draw: 120 VAC, 2 Amps; 230 VAC, 1 Amp
Transformer output: 24 VAC, 4A, @ 120 VAC
· Decoder Line (path) output: 34 V peak-to-peakAA-99D
· Decoder Power draw: 40 mA per active output
· Solenoid capacity: 2 standard 24 VAC Hunter solenoids per output within 150 ft. runs, up to 14 solenoids max simultaneous (includes dual P/MV outputs)
Max. distance to decoder
· (14 AWG) wire path: 10,000 ft
· (12 AWG) wire path: 15,000 ft

Warranty period: 5 years
