EZDS Decoder System

Cost and complexity have often limited decoder technology to higher-end systems. However, with the revolutionary EZ Decoder System (EZDS), you get all the advantages of two-wire installations with simpler, more cost-effective technology — so you can bring the power of two-wire control to more projects than ever before.

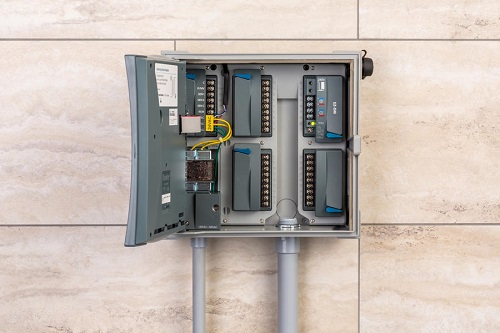

EZDS is compatible with all the features of our Hydrawise™-enabled HCC controller, as well as the ICC2 controller and its web-based Centralus™ management platform. Plug in the EZ-DM two-wire output module to enable up to 54 stations of irrigation, plus a master valve, on a single pair of wires. Then simply place EZ Decoders at each valve!

EZ Decoders are small, waterproof, and come with color-coded wiring and a convenient LED status light. They do not require special wire or connectors to function. Better yet, the system can coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits easy conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!

Warranty period: 2 years

Operating Specifications

Two-wire decoder system for HCC and ICC2 controllers
Up to 54-station capacity, plus master valve
No special wire or connectors required
Allows hybrid operations of conventional and decoder stations (54 total stations max per controller)
Programmable decoders with no serial numbers
Wire paths possible for over 1 km; see wiring table
No special grounding or surge arrestors required in-line

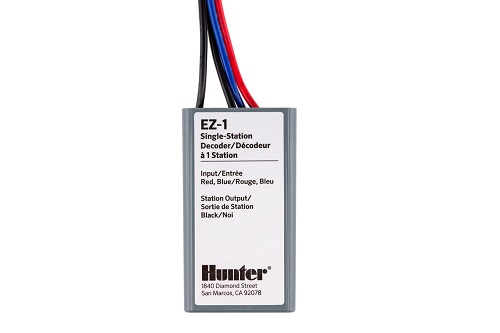

EZ-1 single-station decoders have status LED for positive diagnostics
P/MV can be activated by decoder or direct controller output

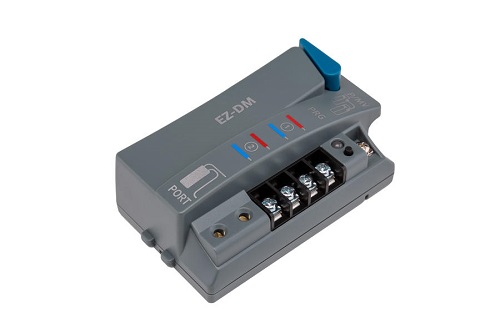

EZ-DM output module works in any controller module slot
