IBV

IBV

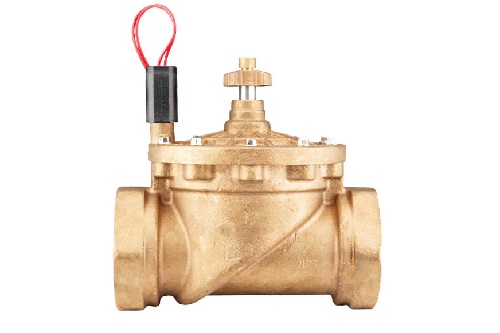

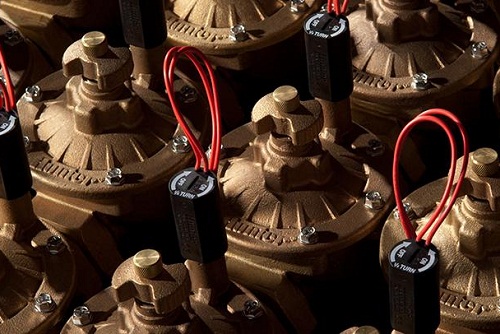

Constructed from solid brass to provide years of trouble-free operation in any water condition, the Hunter IBV is a valve created for the fiercest conditions found on a commercial site. Featuring a brass body and bonnet-built to handle up to 220 PSI-the IBV also boasts a sturdy stainless steel flow control stem. The IBV was designed from the ground up to incorporate many of the industry-leading features found in Hunter valves including the solenoid and ICV diaphragm. Add in a pair of options and provide the IBV with an even higher degree of dependable performance: the Accu-Sync pressure regulator maintains constant downstream pressure and the Filter Sentry™ system keeps the valve free of debris found in reclaimed water or ponds. Built to withstand the rigors of high-pressure situations, the IBV is the commercial-grade valve solution for years of reliable operation.te choice.

Operating Specifications

Flow rate: 0.06- 68 m³/h
Pressure 1.5 – 15bars
Solenoid Specifications: 24 VAC solenoid
User Installed Options:
– Solenoid conduit cover (P/N 464322)
– DC latching solenoid (P/N 458200)
– Accu-Sync pressure regulator
– Reclaimed water ID tag (P/N 700392)

Warranty period: 5 years
