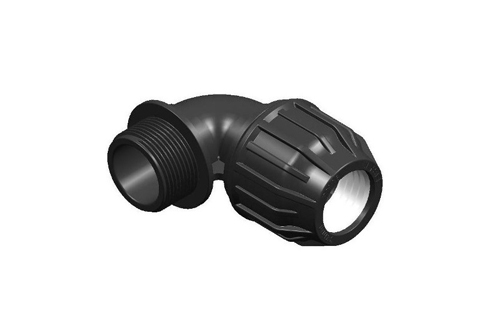

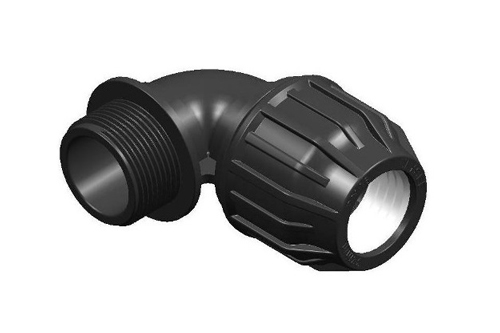

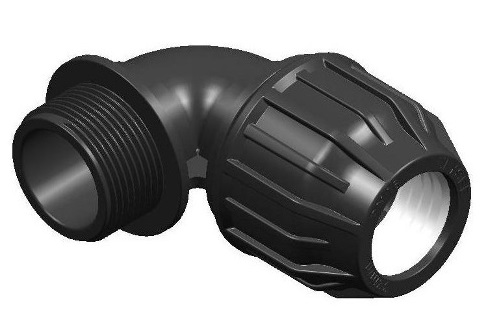

90º Male Elbow

Type: Accessory
Size: 16×1/2 to 110×4 mm x in

Code	Size	Weight	Packing
No	mm x in	g	pcs
332A01601	16 X 1/2	32	24X25
332A01602	16 X 3/4	34	24X25
332A02001	20 X 1/2	46	17X25
332A02002	20 X 3/4	52	17X25
332A02501	25 X 1/2	61	18X20
332A02502	25 X 3/4	65	16X20
332A02503	25 X 1	72	15X20
332A03202	32 X 3/4	103	18X10
332A03203	32 X 1	111	18X10
332A04004	40 X 11/4	203	90
332A04005	40 X 11/2	197	90
332A05005	50 X 11/2	292	60
332A05006	50 X 2	320	60
332A06306	63 X 2	491	30
332A06307	63 X 21/2	508	30
332A07507	75 X 21/2	693	15
332A07508	75 X 3	718	15
332A09008	90 X 3	1138	10
332A11009	110 X 4	2003	6

Download Document

Download brochure: Compression Fittings
