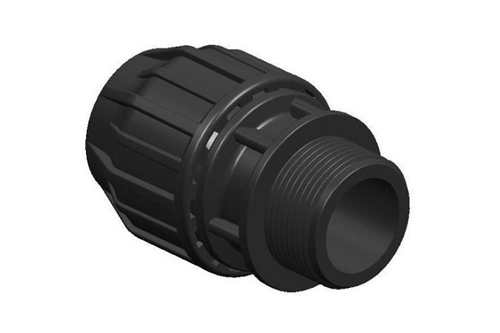

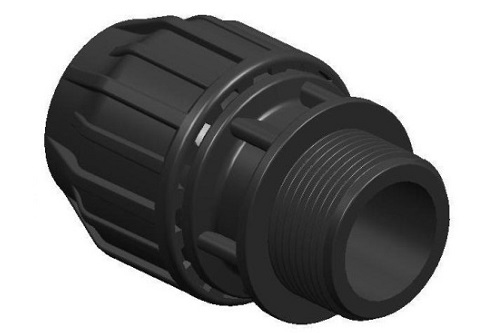

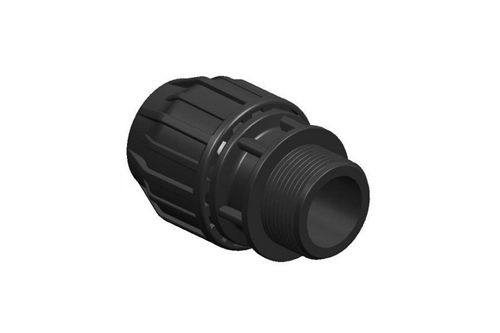

Male Adaptor

Code: 330
Size: 16×3/8 đến 110×4 mm x in

Code	Size	Weight	Packing
No	mm x in	g	pcs
330001610	16 X 3/8	28	30X25
330001601	16 X 1/2	29	30X25
330001602	16 X 3/4	31	30X25
330002001	20 X 1/2	42	20X25
330002002	20 X 3/4	44	20X25
330002003	20 X 1	48	18X25
330002501	25 X 1/2	52	18X20
330002502	25 X 3/4	54	16X20
330002503	25 X 1	56	16X20
330003201	32 X 1/2	92	18X10
330003202	32 X 3/4	95	18X10
330003203	32 X 1	97	18X10
330003204	32 X 11/4	98	18X10
330003205	32 X 11/2	98	15X10
330004003	40 X 1	172	100
330004004	40 X 11/4	174	100
330004005	40 X 11/2	178	100
330004006	40 X 2	188	100
330005003	50 X 1	228	80
330005004	50 X 11/4	231	80
330005005	50 X 11/2	233	80
330005006	50 X 2	237	70
330006305	63 X 11/2	396	45
330006306	63 X 2	402	45
330006307	63 X 21/2	413	40
330007506	75 X 2	569	26
330007507	75 X 21/2	574	26
330007508	75 X 3	584	26
330009006	90 X 2	965	16
330009007	90 X 21/2	960	16
330009008	90 X 3	979	16
330009009	90 X 4	1014	16
330011006	110 X 2	1630	8
330011008	110 X 3	1634	8
330011009	110 X 4	1658	8
