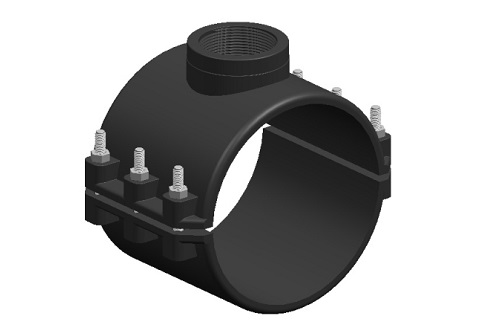

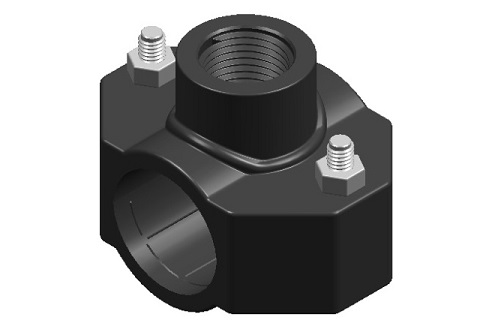

Saddle (without metal ring) Standard O Ring

Type: Accessory
Size: 20×1/2 to 200×11/2 mm x in

Code	Size	Weight	Bolts	Packing
No	mm x in	g		pcs
550002001	20X1/2	60.2	2	400
550002501	25X1/2	60.2	2	300
550002502	25X3/4	57.7	2	300
550003201	32X1/2	71.1	2	270
550003202	32X3/4	68.6	2	270
550003203	32X1		2	250
550004001	40X1/2	103	2	180
550004002	40X3/4	101	2	180
550004003	40X1	106	2	150
550005001	50X1/2	160	2	120
550005002	50X3/4	160	2	120
550005003	50X1	162	2	100
550006301	63X1/2	170	2	80
550006302	63X3/4	170	2	80
550006303	63X1	171	2	80
550045001	50X1/2	204	4	100
550045002	50X3/4	210	4	100
550045003	50X1	213	4	100
550045004	50X11/4	224	4	100
550046301	63X1/2	235	4	80
550046302	63X3/4	231	4	80
550046303	63X1	232	4	80
550046304	63X11/4	220	4	70
550046305	63X11/2	239	4	70
550007501	75X1/2	262	4	65
550007502	75X3/4	272	4	65
550007503	75X1	264	4	65
550007504	75X11/4	283	4	60
550007505	75X11/2	300	4	60
550007506	75X2	313	4	60
550009001	90X1/2	350	4	45
550009002	90X3/4	341	4	40
550009003	90X1	342	4	40
550009004	90X11/4	343	4	40
550009005	90X11/2	361	4	35
550009006	90X2	363	4	35
550011001	110X1/2	505	4	30
550011002	110X3/4	499	4	30
550011003	110X1	503	4	30
550011004	110X11/4	507	4	30
550011005	110X11/2	546	4	30
550011006	110X2	522	4	25
550012502	125X3/4	508	4	30
550012503	125X1	507	4	30
550012504	125X11/4	509	4	30
550012505	125X11/2	509	4	30
550012506	125X2	518	4	30
550014002	140X3/4	748	6	24
550014003	140X1	753	6	24
550014004	140X11/4	779	6	24
550014005	140X11/2	784	6	24
550014006	140X2	813	6	24
550016002	160X3/4	792	6	24
550016003	160X1	788	6	24
550016004	160X11/4	794	6	24
550016005	160X11/2	826	6	24
550016006	160X2	798	6	24
550020001	200X1/2	1785	6	10
550020002	200X3/4	1787	6	10
550020003	200X1	1773	6	10
550020004	200X11/4	1765	6	10
550020005	200X11/2	1759	6	10

DOCUMENTS

Download brochure: Saddles
