I-20

I-20

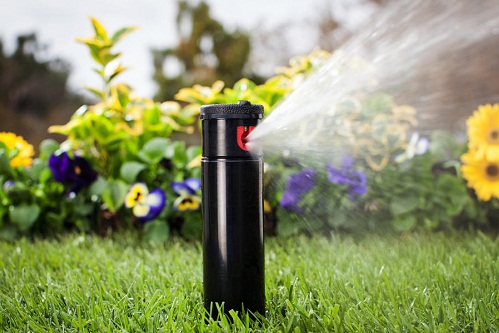

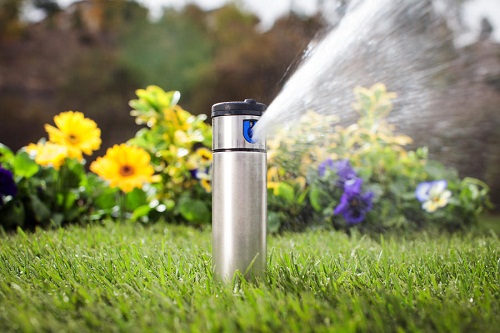

With 34 nozzle choices, a 17’ to 46’ radius, and 6 body choices, the I-20 is an indispensable rotor. Whether you’ve got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return; non-reversing 360, from 50 to 360 degrees; and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop® control, easy through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class.

Operating specifications

Radius: 4.9 to 14.0 m
Flow Rate: 0.07 to 3.23 m3/hr
Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa
Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
Precipitation rates: 10 mm/hr approx
Nozzle trajectory: 13 degrees approx

Warranty period: 5 years
