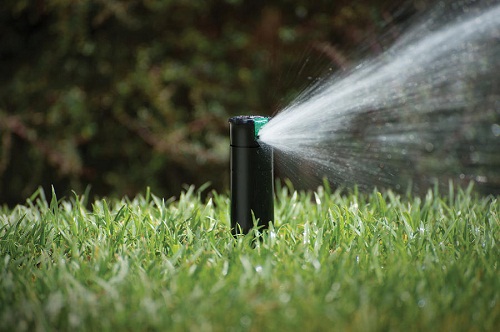

SRM

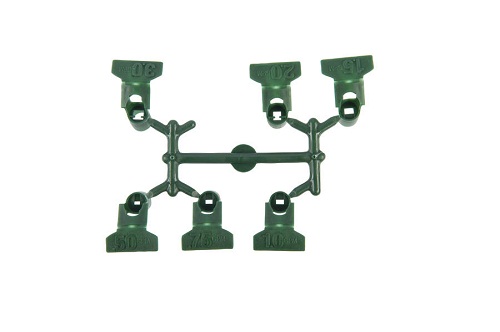

The SRM is Hunter’s shortest-range rotor, and was designed to offer a convenient and efficient alternative to spray heads. It is capable of working in tandem with larger rotors to combine big and small areas in a single zone. Utilizing the SRM where appropriate results in fewer sprinklers performing more efficient work at a more economical price. The SRM features a rack of six water-efficient nozzles-all of which can be easily identified by its flow rates and installed and changed quickly and easily. This versatile rotor also includes a radius adjustment feature that fine-tunes the spray to keep water off driveways, walks, and other non-landscaped surfaces.
Operating specifications
Radius: 4.0 to 9.4 m
Flow Rate: 0.08 to 0.82 m3/hr
Recommended pressure range: 1.7 to 3.8 bar; 170 to 380 kPa
Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
Precipitation rates: 11 mm/hr approx
Nozzle trajectory: 18 degrees approx
Warranty period: 2 years
Model

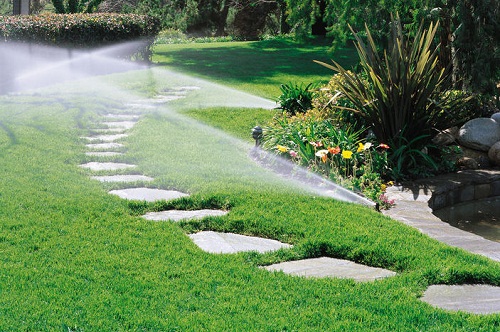

Irrigation Photos
