I-40

I-40

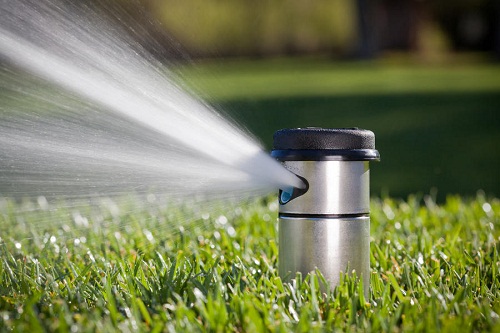

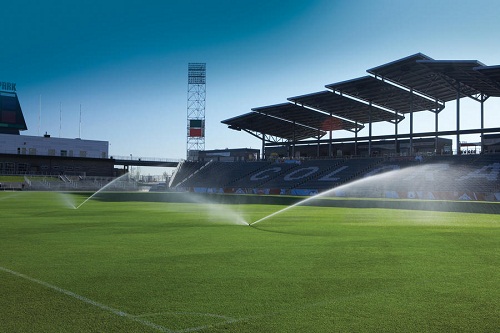

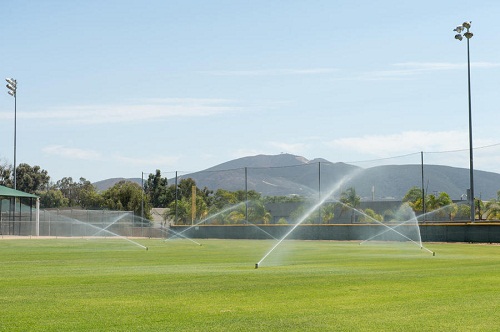

The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 70 feet. Featuring diverse three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury; it’s no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports, public park, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional’s best solution.

Operating specifications

Radius: 15.2 to 23.2 m
Flow Rate: 2.75 to 7.76 m3/hr
Recommended pressure range: 2.5 to 7.0 bar; 250 to 700 kPa
Operating pressure range: 2.5 to 7.0 bar; 250 to 700 kPa
Precipitation rates: 15 mm/hr approx
Nozzle trajectory: 25 degrees approx

Warranty period: 5 years
