PGV – ASV

PGV-ASV

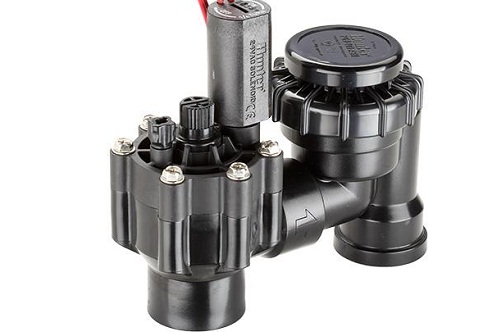

With the PGV-ASV, irrigation systems that require backflow prevention for every zone can enjoy simple operation and trouble-free performance without the need to install a separate backflow preventer. This convenient all-in-one unit offers a host of features that professionals expect from a Hunter valve. Such features include a rugged diaphragm that provides a leak-proof seal; internal and external bleed for manual operation, stainless steel hardware and springs, stainless steel bonnet screws, and heavy-duty PVC construction and glass-reinforced bonnet. The PGV-ASV also includes flow control, allowing precise adjustment. For proven reliability in an anti-siphon/electric valve, PGV-ASV is the ideal solution.

Operating Specifications

Flow rate: 0.05 – 9 m³/h
Pressure 1.5 – 10bars
Solenoid Specifications: 24 VAC solenoid
User Installed Options:
– Solenoid conduit cover (P/N 464322)
– DC latching solenoid (P/N 458200)
– Accu-Sync pressure regulator
– Reclaimed water ID (P/N 269205)

Warranty period: 2 years
