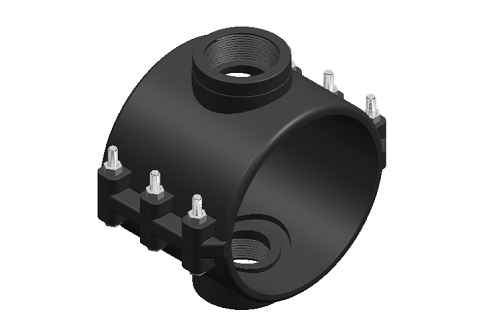

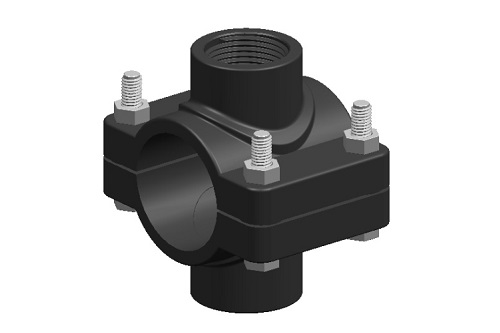

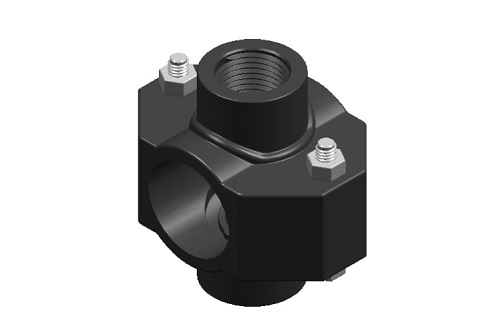

Double Saddle (without metal ring)

Type: Accessory
Size: 20×1/2 to 200×2 mm x in

Code	Size	Weight	Bolts	Packing
No	mm x in	g		pcs
550A02001	20X1/2	72.6	2	75
550A02501	25X1/2	72.6	2	75
550A02502	25X3/4	67.7	2	75
550A03201	32X1/2	84.7	2	50
550A03203	32X3/4	79.8	2	50
550A03202	32X1		2	50
550A04001	40X1/2	116	2	60
550A04002	40X3/4	111	2	60
550A04003	40X1	122	2	50
550A05001	50X1/2	179	2	40
550A05002	50X3/4	178	2	30
550A05003	50X1	183	2	30
550A06301	63X1/2	187	2	40
550A06302	63X3/4	188	2	30
550A06303	63X1	172	2	30
550A45001	63X1/2	214	4	40
550A45002	50X3/4	225	4	30
550A45003	50X11	231	4	30
550A45004	50X11/4	254	4	25
550A46301	63X1/2	253	4	40
550A46302	63X3/4	246	4	40
550A46303	63X1	247	4	40
550A46304	63X11/4	241	4	30
550A46305	63X11/2	280	4	50
550A07501	75Χ1/2	281	4	50
550A07502	75X3/4	301	4	50
550A07503	75X1	286	4	50
550A07504	75X11/4	317	4	50
550A07505	75X11/2	352	4	50
550A07506	75X2	377	4	40
550Α09001	90Χ1/2	381	4	50
550A09002	90X3/4	363	4	50
550A09003	90X1	363	4	50
550A09004	90X11/4	367	4	50
550A09005	90X11/2	403	4	40
550A09006	90X2	405	4	40
550A11001	110Χ1/2	531	4	25
550A11002	110X3/4	519	4	25
550A11003	110X1	526	4	25
550A11004	110X11/4	536	4	25
550A11005	110X11/2	613	4	25
550A11006	110X2	565	4	20
550Α12502	125Χ3/4	544	4	15
550Α12503	125Χ1	542	4	15
550Α12504	125Χ11/4	546	4	15
550Α12505	125Χ11/2	546	4	15
550A12506	125X2	564	4	15
550A14002	140Χ3/4	763	6	15
550Α14003	140Χ1	773	6	15
550Α14004	140Χ11/4	824	6	15
550Α14005	140Χ11/2	834	6	15
550Α14006	140Χ2	893	6	12
550A16002	160X3/4	820	6	15
550A16003	160X1X1	812	6	15
550Α16004	160Χ11/4	824	6	15
550A16005	160X11/2	888	6	15
550A16006	160X2	832	6	15
550A20001	200X1/2	1842	6	8
550A20002	200X3/4	1846	6	8
550A20003	200X1	1818	6	8
550A20004	200X11/4	1802	6	8
550A20005	200X11/2	1790	6	8
550A20006	200X2	1834	6	8

DOCUMENTS

Download brochure: Saddles
