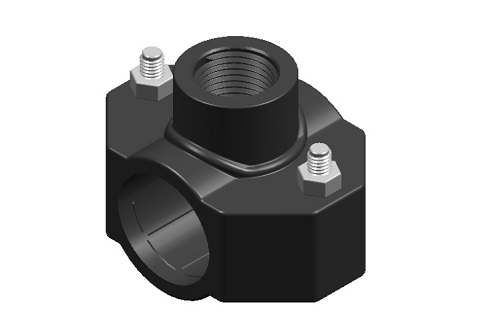

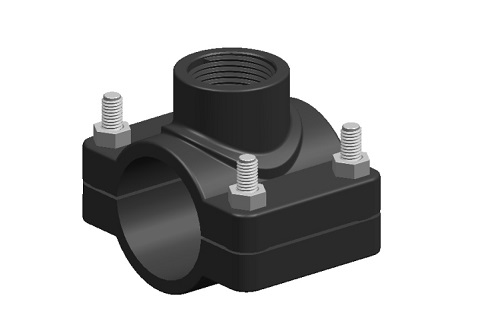

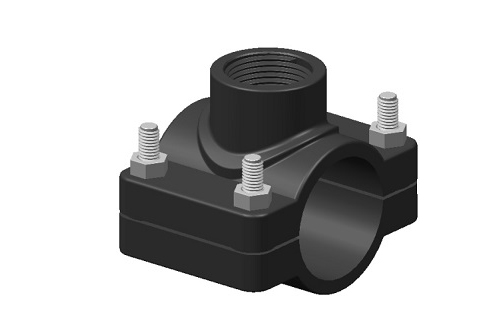

Saddle (with Flat O-Ring)

Type: Accessory
Size: 40×1 to 110×1 mm x in

Code	Size	Weight	Bolts	Packing
No	mm x in	g		pcs
550F04003	40X1	122	2	180
550F05001	50X1/2	179	2	120
550F05002	50X3/4	178	2	120
550F05003	50X1	183	2	120
550F0601	63X1/2	187	2	100
550F06302	63X3/4	188	2	100
550F06303	63X1	172	2	100
550F45001	50X1/2	204	4	100
550F45002	50X3/4	210	4	100
550F4503	50X1	213	4	100
550F46301	63X1/2	235	4	80
550F46302	63X3/4	231	4	80
550F46303	63X1	232	4	80
550F46304	63X11/4	220	4	70
550F46305	63X11/2	239	4	70
550F07502	75X3/4	272	4	65
550F07503	75X1	264	4	65
550F09001	90X1/2	350	4	45
550F09002	90X3/4	341	4	40
550F09003	90X1	342	4	40
550F11001	110X1/2	505	4	30
550F11002	110X3/4	499	4	30
550F11003	110X1	503	4	30

DOCUMENTS

Download brochure: Saddles
