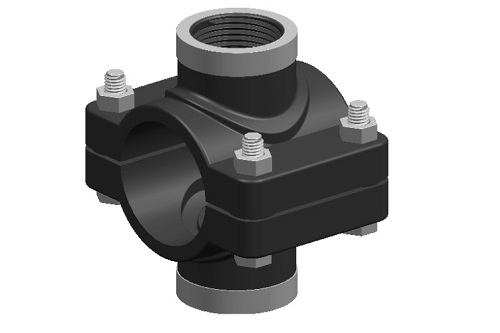

Double Saddle (with metal ring)

Type: Accessory
Size: 20×1/2 to 200×4 mm x in

Code	Size	Weight	Bolts	Packing
No	mm x in	g		pcs
550C02001	20X1/2	80	2	75
550C02501	25X1/2	80	2	75
550C02502	25X3/4	75.2	2	75
550C03201	32X1/2	91.7	2	50
550C03203	32X3/4	86.7	2	50
550C03202	32X1		2
550C04001	40X1/2	123	2	60
550C04002	40X3/4	118	2	60
550C04003	40X1	129	2	50
550C05001	50X1/2	187	2	40
550C05002	50X3/4	186	2	30
550C05003	50X1	192	2	30
550C06301	63X1/2	195	2	40
550C06302	63X3/4	196	2	30
550C06303	63X1	197	2	30
550C45001	50X1/2	214	4	40
550C45002	50X3/4	233	4	30
550C45003	50X1	239	4	30
550C45004	50X11/4	266	4	25
550C46301	63X1/2	261	4	40
550C46302	63X3/4	254	4	40
550C46303	63X1	255	4	40
550C46304	63X11/4	252	4	30
550C46305	63X11/2	296	4	30
550C07501	75X1/2	289	4	50
550C07502	75X3/4	310	4	50
550C07503	75X1	294	4	50
550C07504	75X11/4	329	4	50
550C07505	75X11/2	368	4	50
550C07506	75X2	396	4	40
550C09001	90X1/2	389	4	50
550C09002	90X3/4	371	4	50
550C09003	90X1	372	4	50
550C09004	90X11/4	379	4	50
550C09005	90X11/2	419	4	40
550C09006	90X2	425	4	40
550C11001	110X1/2	539	4	25
550C11002	110X3/4	528	4	25
550C11003	110X1	535	4	25
550C11004	110X11/4	555	4	25
550C11005	110X11/2	632	4	25
550C11006	110X2	584	4	20
550C11008	110X3	698	4	15
550C12502	125X3/4	552	4	15
550C12503	125X1	550	4	15
550C12504	125X11/4	562	4	15
550C12505	125X11/2	562	4	15
550C12506	125X2	583	4	15
550C12508	125X3	994	6	12
550C14002	140X3/4	773	6	15
550C14003	140X1	787	6	15
550C14004	140X11/4	841	6	15
550C14005	140X11/2	857	6	15
550C14006	140X2	924	6	12
550C16002	160X3/4	828	6	15
550C16003	160X1	820	6	15
550C16004	160X11/4	840	6	15
550C16005	160X11/2	907	6	15
550C16006	160X2	851	6	15
550C16008	160X3	1471	6	10
550C16009	160X4	1501	6	10
550C20001	200X1/2	1858	6	8
550C20002	200X3/4	1862	6	8
550C20003	200X1	1834	6	8
550C20004	200X11/4	1818	6	8
550C20005	200X11/2	1806	6	8
550C20006	200X2	1853	6	8
550C20008	200X3	1903	6	8
550C20009	200X4	1878	6	8
