Code | Size | Weight | Bolts | Packing |
---|---|---|---|---|
No | mm x in | g | pcs | |
550H04003 | 40X1 | 109 | 2 | 180 |
550H05001 | 50X1/2 | 164 | 2 | 120 |
550H05002 | 50X3/4 | 164 | 2 | 120 |
550H05003 | 50X1 | 166 | 2 | 120 |
550H06301 | 63X1/2 | 174 | 2 | 100 |
550H06302 | 63X3/4 | 175 | 2 | 100 |
550H06303 | 63X1 | 175 | 2 | 100 |
550H45001 | 50X1/2 | 205 | 4 | 100 |
550H45002 | 50X3/4 | 214 | 4 | 100 |
550H45003 | 50X1 | 217 | 4 | 100 |
550H46301 | 63X1/2 | 239 | 4 | 80 |
550H46302 | 63X3/4 | 235 | 4 | 80 |
550H46303 | 63X1 | 236 | 4 | 80 |
550H07501 | 75X1/2 | 266 | 4 | 65 |
550H07502 | 75X3/4 | 276 | 4 | 65 |
550H07503 | 75X1 | 269 | 4 | 65 |
550H09001 | 90X1/2 | 354 | 4 | 45 |
550H09002 | 90X1 | 346 | 4 | 40 |
550H11001 | 110X1/2 | 509 | 4 | 30 |
550H11002 | 110X1 | 507 | 4 | 30 |

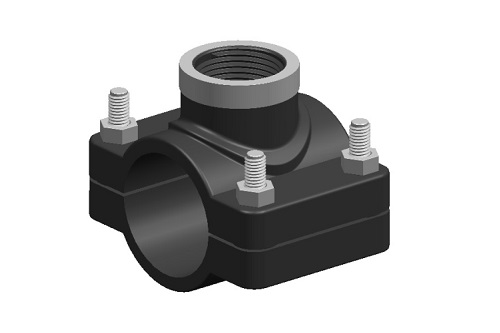

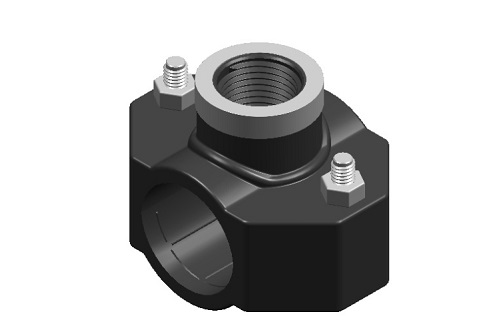

Saddle (with metal ring & flat O-ring)
Type: Accessory
Size: 40×1 to 110×1 mm x in
SKU: 550H
Category: SADDLES
Tags: 550H, accessories, Đai khởi thuỷ (with metal ring & flat O-ring), elysee, phụ kiện, Saddle, Saddle (with metal ring & flat O-ring)
