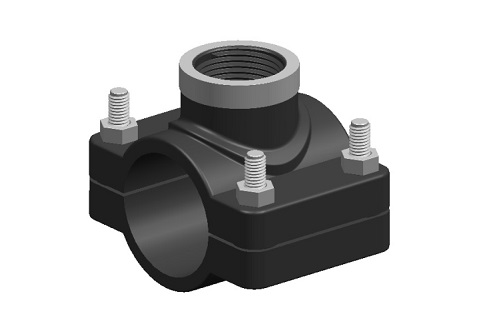

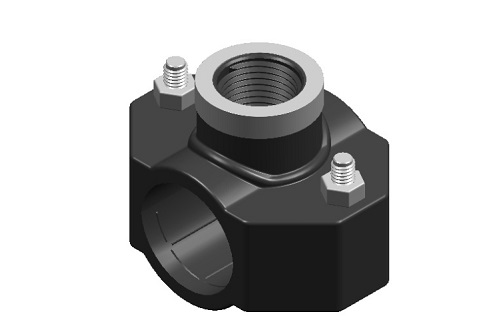

Đai khởi thuỷ (with metal ring & flat O-ring)

Mã sản phẩm: 550H
Kích thước: 40×1 đến 110×1 mm x in

Code	Size	Weight	Bolts	Packing
No	mm x in	g		pcs
550H04003	40X1	109	2	180
550H05001	50X1/2	164	2	120
550H05002	50X3/4	164	2	120
550H05003	50X1	166	2	120
550H06301	63X1/2	174	2	100
550H06302	63X3/4	175	2	100
550H06303	63X1	175	2	100
550H45001	50X1/2	205	4	100
550H45002	50X3/4	214	4	100
550H45003	50X1	217	4	100
550H46301	63X1/2	239	4	80
550H46302	63X3/4	235	4	80
550H46303	63X1	236	4	80
550H07501	75X1/2	266	4	65
550H07502	75X3/4	276	4	65
550H07503	75X1	269	4	65
550H09001	90X1/2	354	4	45
550H09002	90X1	346	4	40
550H11001	110X1/2	509	4	30
550H11002	110X1	507	4	30

Download tài liệu

Download brochure: Saddles
