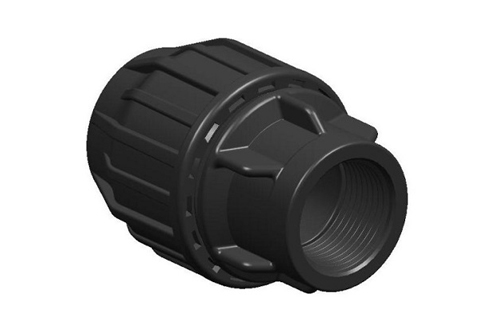

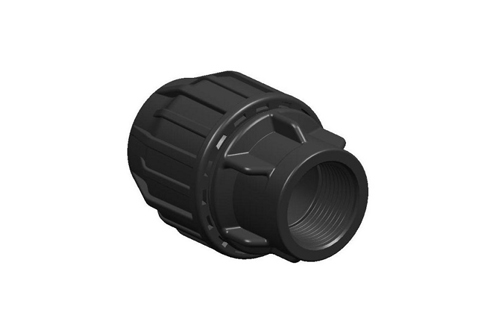

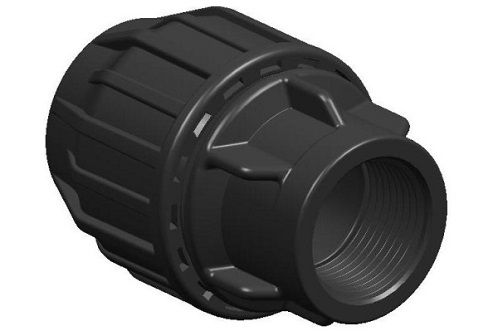

Nối ren trong

Mã sản phẩm: 330A
Kích thước: 16×3/8 đến 110×4 mm x in

Code	Size	Weight	Packing
No	mm x in	g	pcs
330A01610	16 X 3/8	27	30X25
330A01601	16 X 1/2	29	30X25
330A01602	16 X 3/4	32	30X25
330A02010	20 X 3/8	38	20X25
330A02001	20 X 1/2	39	20X25
330A02002	20 X 3/4	42	20X25
330A02501	25 X 1/2	56	18X20
330A02502	25 X 3/4	54	18X20
330A02503	25 X 1	61	17X20
330A03201	32 X 1/2	88	22X10
330A03202	32 X 3/4	88	22X10
330A03203	32 X 1	90	22X10
330A03204	32 X 11/4	140	4X40
330A03205	32 X 11/2	149	4X40
330A04003	40 X 1	171	100
330A04004	40 X 11/4	180	100
330A04005	40 X 11/2	185	100
330A05004	50 X 11/4	214	65
330A05005	50 X 11/2	221	65
330A05006	50 X 2	236	65
330A06305	63 X 11/2	365	45
330A06306	63 X 2	373	45
330A06307	63 X 21/2	382	45
330A07506	75 X 2	586	26
330A07507	75 X 21/2	630	26
330A07508	75 X 3	669	26
330A09007	90 X 21/2	1023	16
330A09008	90 X 3	1113	16
330A09009	90 X 4	1279	16
330A11008	110 X 3	1707	8
330A11009	110 X 4	1914	8

Download tài liệu

Download brochure: Compression Fittings
